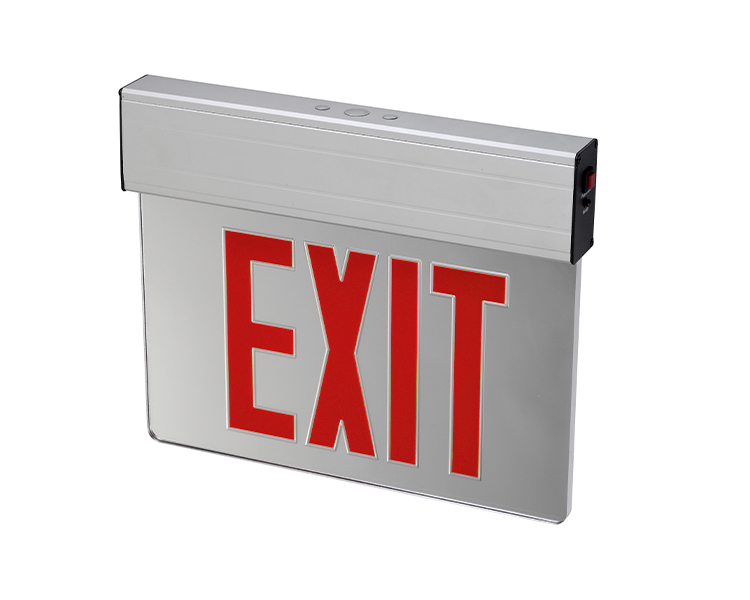

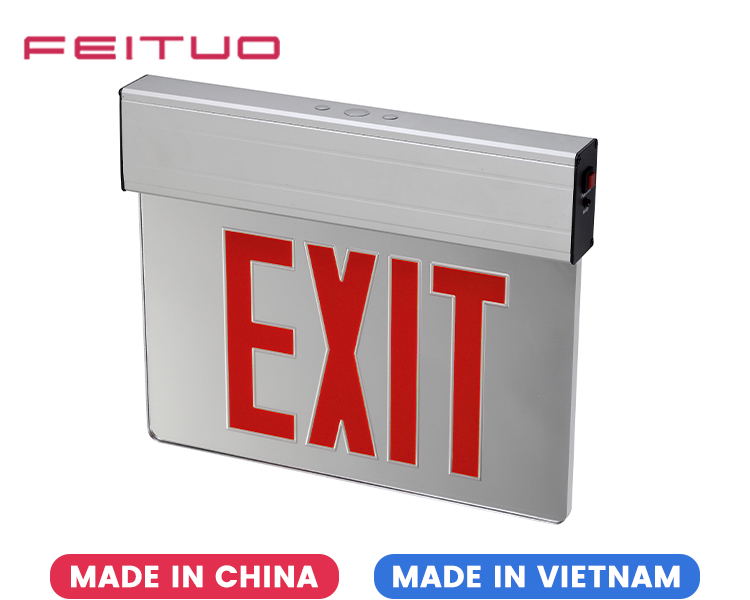

JELEX2RM-UL Aluminum Housing Exit Light With High Grade Acrylic Panel

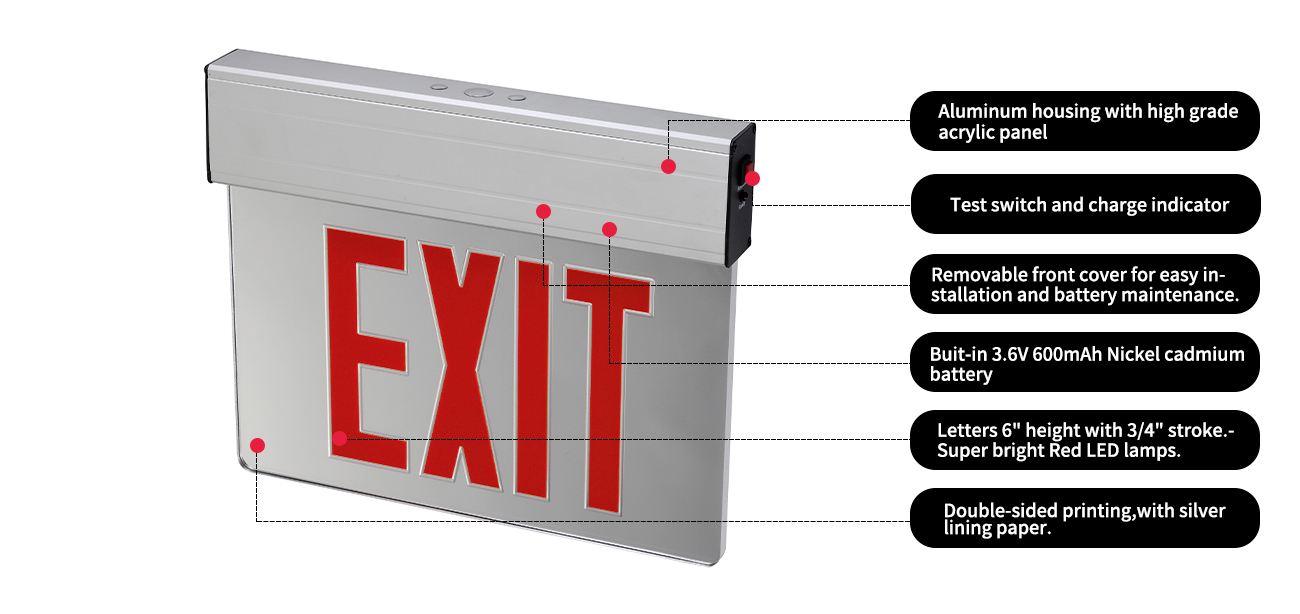

Features:
Double Face 6 Inch 12 LED EMERGENCY EXIT SIGN
*Light source: 12xLED lights-Red color
*Aluminum housing with high grade acrylic panel:Double-sided printing,with silver lining paper.
*Innovative,easy installation in minutes.
*Aluminum mounting plate allows top,back or end mount.
*Removable directional indicators.
*120V/277VAC dual voltage operation
*Letters 6" height with 3/4" stroke.Super bright RED LED lamps.
*Optional white or silver mylar.
*Buit-in 3.6V 600mAh Nickel cadmium battery for minimum 90 minutes emergency operation.
*Maximum 24 hours for full recharge time
*Test switch and charge indicator
*Removable front cover for easy installation and battery maintenance.
*UL and CULus listed
*0℃ to 40℃ indoor damp location listed

Usage ：For hospital, hotel, mall, outdoor, parking lot, restaurant, office Building, station, supermarket

Certification ：UL

PDF download
Contact us

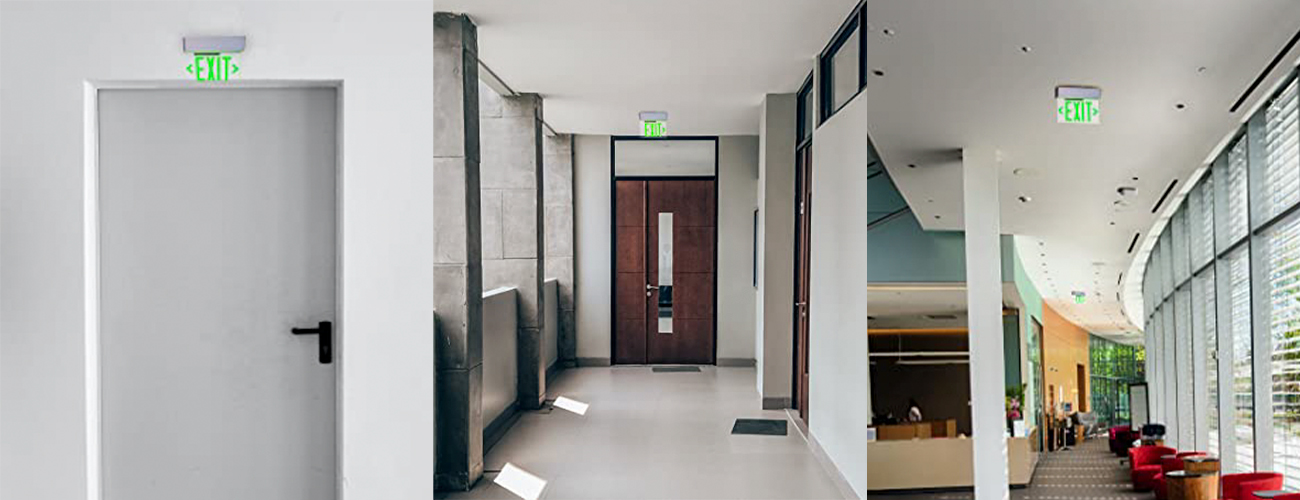

Scene Application

Description

The ultimate exit sign in design and versatility. This Red LED Edge Lit Exit Sign will solve almost any mounting configuration problem.  This one style allows for ceiling, side, and wall mount installation.  The edge lit panel is constructed of high grade acrylic with customizable directional arrows to point towards exit direction.Mirror divider Single and on double-face versions. The removable front cover makes installation and maintenance headache-free!
The LED series is UL listed and meets or exceeds the following: UL 924, NEC and NFPA 101 Life Safety Code requirements. Also available with UL Canada listing option.

Technical Details

Part Number JELEX2RM
Item Weight 3.3 lbs   /  1.5 kgs
Package Dimensions 13.98 x 11.42 x 2.36 inches
35.5 x 29 x 6 cm
Color Red EXIT Letter
Material Aluminum housing with mirror divider acrylic double face
Voltage 120 or 277 Volts
Battery 3.6V 600mAh Ni-Cad
Wattage 3.5 watts
Type of Bulb ‎LED
Mounting Type Wall, sloped, high, or standard ceiling mounting
Certifications UL listed
Weather Ratings Listed for damp location
Carton Weight 21.6 lbs   /   9.8 kgs
Carton Size 15.35 x 14.37 x 12.2 inches / 6pcs
39 x 36.5 x 31 cm / 6pcs
*CONSTRUCTION - This Edge Lit Exit Sign housing is constructed of die-cast aluminum housing with an etched, mirror divider acrylic panel. Lettering is 6" high with 3/4" stroke. Aluminum housing is standard, black and white housing available.
*ILLUMINATION - This Edge Lit Exit Sign series provides a long life LED illumination. The unit is constructed with a red high output LED board.  Energy consumption is rated at less than 3 watts for the AC only model units. Battery backup units energy consumption is rated at less than 1 watts.
*EMERGENCY POWER BATTERY BACKUP- This Edge Lit Exit Sign series is designed with a 4.8 Volt 400mAh maintenance-free Ni-MH battery. The battery is protected by a low voltage cut-off circuit. The operating temperature range for the battery is 32°F (0°C) to 104°F (40°C).
*EASY INSTALLATION IN MINUTES - The Edge Lit Exit Sign is suitable for wall, sloped, high, or standard ceiling mounting. Recessed mounting option allows unit to be ceiling recessed for drop ceiling or new construction application only. Includes field installable directional arrow indicators. All hardware is included.
*5 YEAR WARRANTY - Our LED emergency lights are offered high quality products at affordable prices backed by 5 year warranty and professional after-sales support.

Installation video

  • 1280ba18a35c58cbe433c9fd75f292a1_1

Show details

Customized Solution

Need Design?
...No Problem!		 FEITUO Lighting has the ideal solution for custom emergency light. lf we do not have it already, our engineers and technicians will work with you to develop a new one. lf you have any needs for your new product or with to make further improvements, we are-here to offer our support.



At NINGBO FEITUO ELECTRIC APPLIANCE CO., LTD., we understand the importance of tailored solutions and exceptional service. That's why we proudly offer comprehensive OEM and ODM services, ensuring that our products seamlessly integrate into your brand and fulfill your specific specifications. Our product range includes, but is not limited to Emergency Lights, Emergency Exit Signs, Emergency Bulkheads, Emergency Twin Spotlights, Emergency Downlights,and Emergency Battery Backups.Whether you need a customized design, unique features, or branding elements, our dedicated team is here to bring your vision to life.

Applications

  • Hospital
  • Hotel
  • Mall
  • Outdoor
  • Parking lot
  • Restaurant
  • Office building
  • Station
  • Supermarket

Product comparison

Pricture
Part Number LE297 LE2912 JELBEX1GC JELBEX1RC JELBEX1GM JELBEX1RM JELBEX2GM JELBEX2RM JELEX1GC JELEX1RC
Item Weight 1.32 lbs /0.6 kgs 1.76 lbs /0.8 kgs 3.1 lbs /1.4 kgs 3.1 lbs /1.4 kgs 3.1 lbs /1.4 kgs 3.1 lbs /1.4 kgs 3.1 lbs /1.4 kgs 3.1 lbs /1.4 kgs 3.3 lbs /1.5 kgs 3.3 lbs /1.5 kgs
Package Dimensions 15.4 x 9.17 x 1.38 inches 14.76 x 9.17 x 2.1 inches 12.4 x 7.48 x 2.36 inches 12.4 x 7.48 x 2.36 inches 12.4 x 7.48 x 2.36 inches 12.4 x 7.48 x 2.36 inches 12.4 x 7.48 x 2.36 inches 12.4 x 7.48 x 2.36 inches 13.98 x 11.42 x 2.36 inches 13.98 x 11.42 x 2.36 inches
39.1 x 23.3 x 3.5 cm 37.5 x 23.3 x 5.3 cm 31.5 x 19 x 6 cm 31.5 x 19 x 6 cm 31.5 x 19 x 6 cm 31.5 x 19 x 6 cm 31.5 x 19 x 6 cm 31.5 x 19 x 6 cm 35.5 x 29 x 6 cm 35.5 x 29 x 6 cm
Color ‎White/ Green directional pictograms ‎White/ Green directional pictograms Green EXIT Letter Red EXIT Letter Green EXIT Letter Red EXIT Letter Green EXIT Letter Red EXIT Letter Green EXIT Letter Red EXIT Letter
Material PMMA exit panel & ABS housing PMMA exit panel & ABS housing Aluminum housing with acrylic face Aluminum housing with acrylic face Aluminum housing with mirror divider acrylic face Aluminum housing with mirror divider acrylic face Aluminum housing with mirror divider acrylic double face Aluminum housing with mirror divider acrylic double face Aluminum housing with acrylic face Aluminum housing with acrylic face
Voltage 220-240 Volts 220-240 Volts 120 - 277 Volts 120 - 277 Volts 120 - 277 Volts 120 - 277 Volts 120 - 277 Volts 120 - 277 Volts 120 or 277 Volts 120 or 277 Volts
Battery 3.6V 500mAh Ni-Cad 3.6V 500mAh Ni-Cad 4.8V 400mAh Ni-MH 4.8V 400mAh Ni-MH 4.8V 400mAh Ni-MH 4.8V 400mAh Ni-MH 4.8V 400mAh Ni-MH 4.8V 400mAh Ni-MH 3.6V 600mAh Ni-Cad 3.6V 600mAh Ni-Cad
Wattage 2.5 watts 2 watts 3 watts 3 watts 3 watts 3 watts 3 watts 3 watts 3.5 watts 3.5 watts
Type of Bulb ‎LED ‎LED ‎LED ‎LED ‎LED ‎LED ‎LED ‎LED ‎LED ‎LED
Mounting Type Surface, ceiling or cord suspended Surface, ceiling or cord suspended Wall, sloped, high, or standard ceiling mounting Wall, sloped, high, or standard ceiling mounting Wall, sloped, high, or standard ceiling mounting Wall, sloped, high, or standard ceiling mounting Wall, sloped, high, or standard ceiling mounting Wall, sloped, high, or standard ceiling mounting Wall, sloped, high, or standard ceiling mounting Wall, sloped, high, or standard ceiling mounting
Certifications CE RoHs compliance CE RoHs compliance UL listed UL listed UL listed UL listed UL listed UL listed UL listed UL listed
Weather Ratings IP20 IP20 Listed for damp location Listed for damp location Listed for damp location Listed for damp location Listed for damp location Listed for damp location Listed for damp location Listed for damp location
Carton Weight 17.64 lbs / 8 kgs 20.94 lbs / 9.5 kgs 20.72 lbs / 9.4 kgs 20.72 lbs / 9.4 kgs 20.72 lbs / 9.4 kgs 20.72 lbs / 9.4 kgs 20.72 lbs / 9.4 kgs 20.72 lbs / 9.4 kgs 21.6 lbs / 9.8 kgs 21.6 lbs / 9.8 kgs
Carton Size 16.14 x 14.57 x 9.84 inches / 10pcs 22.24 x 15.35 x 9.84 inches / 10pcs 15.35 x 13.19 x 8.66 inches / 6pcs 15.35 x 13.19 x 8.66 inches / 6pcs 15.35 x 13.19 x 8.66 inches / 6pcs 15.35 x 13.19 x 8.66 inches / 6pcs 15.35 x 13.19 x 8.66 inches / 6pcs 15.35 x 13.19 x 8.66 inches / 6pcs 15.35 x 14.37 x 12.2 inches / 6pcs 15.35 x 14.37 x 12.2 inches / 6pcs
41 x 37 x 25 cm / 10pcs 56.5 x 39 x 25 cm / 10pcs 39 x 33.5 x 22 cm / 6pcs 39 x 33.5 x 22 cm / 6pcs 39 x 33.5 x 22 cm / 6pcs 39 x 33.5 x 22 cm / 6pcs 39 x 33.5 x 22 cm / 6pcs 39 x 33.5 x 22 cm / 6pcs 39 x 36.5 x 31 cm / 6pcs 39 x 36.5 x 31 cm / 6pcs
