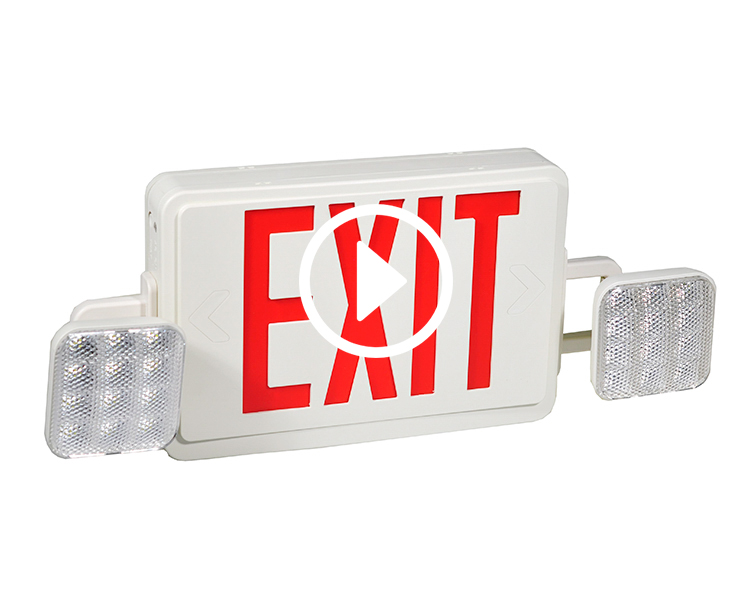

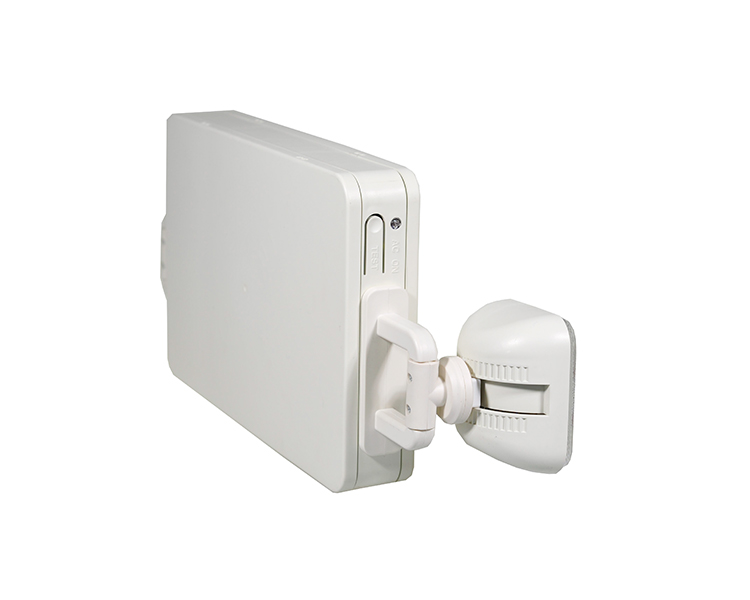

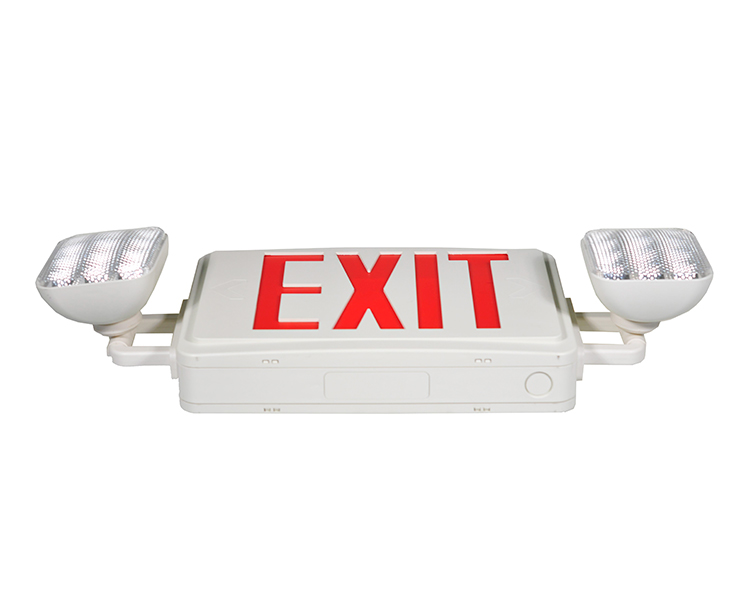

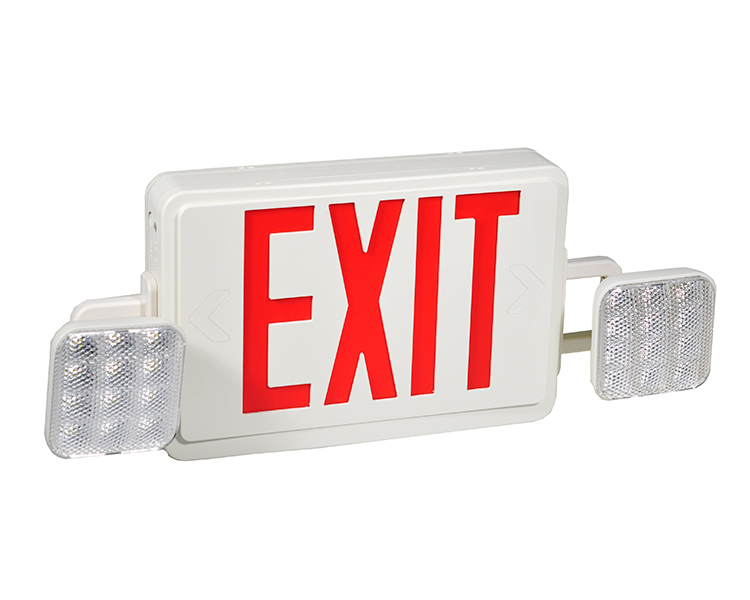

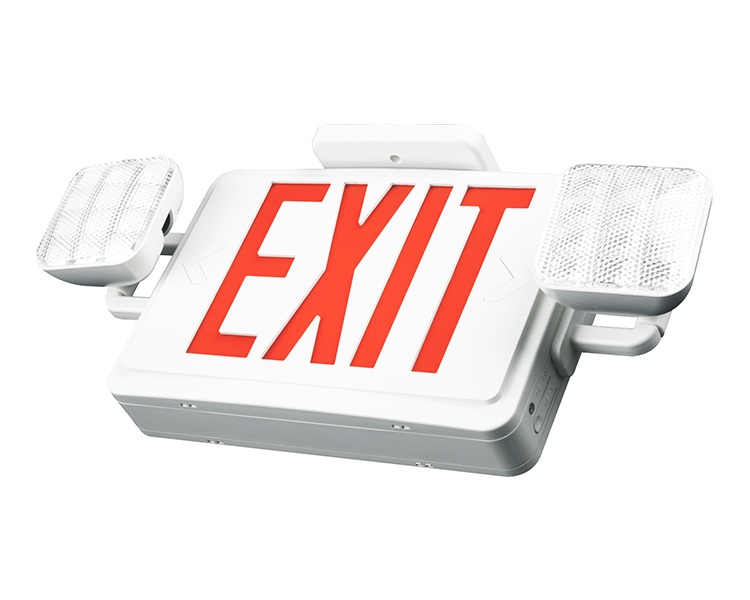

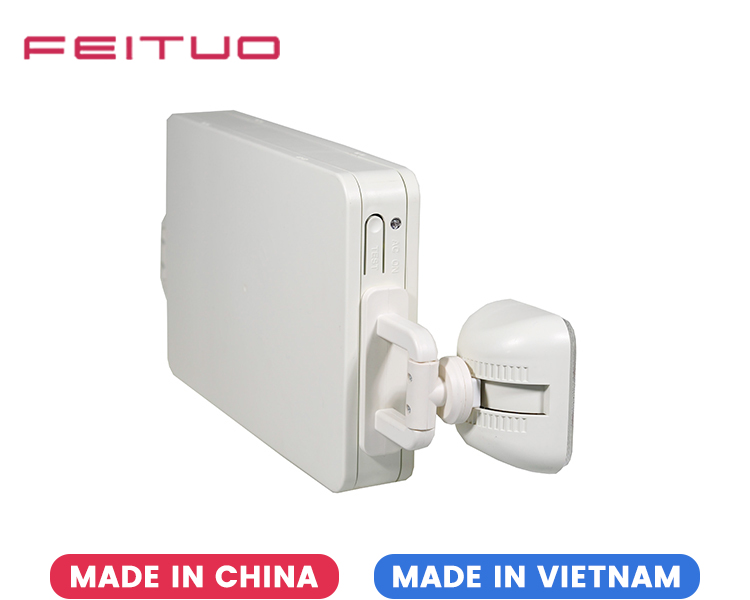

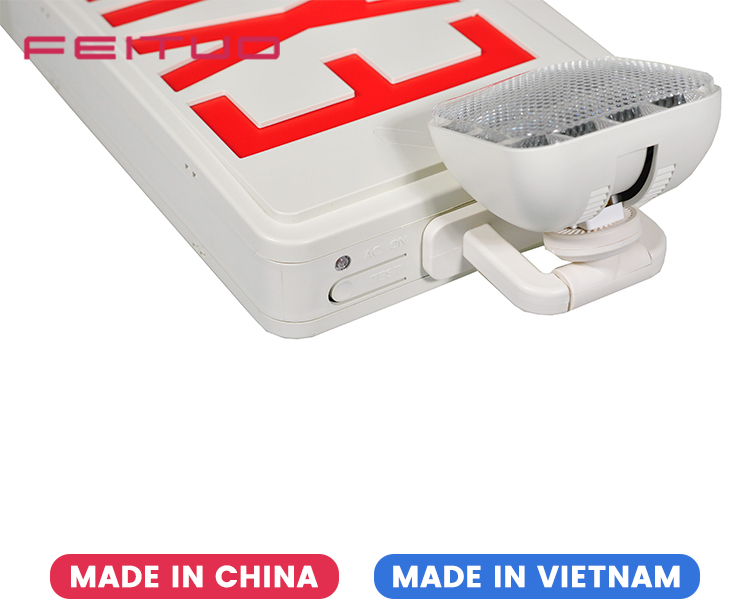

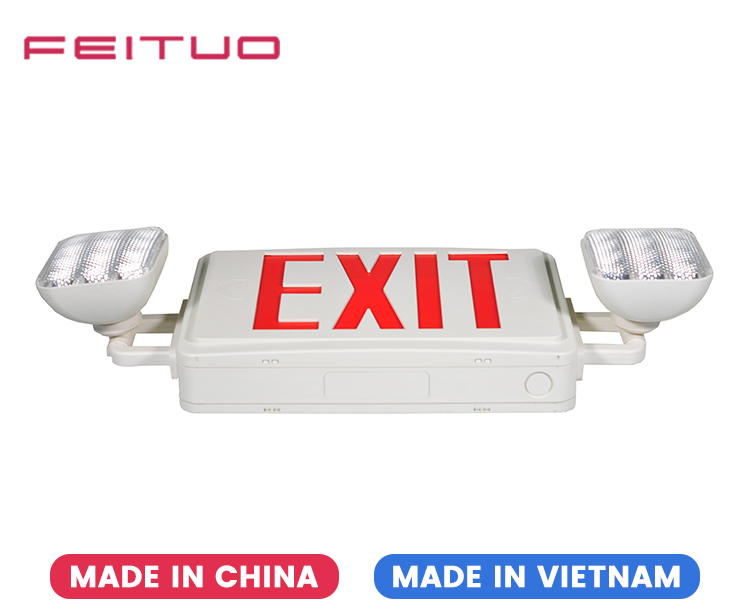

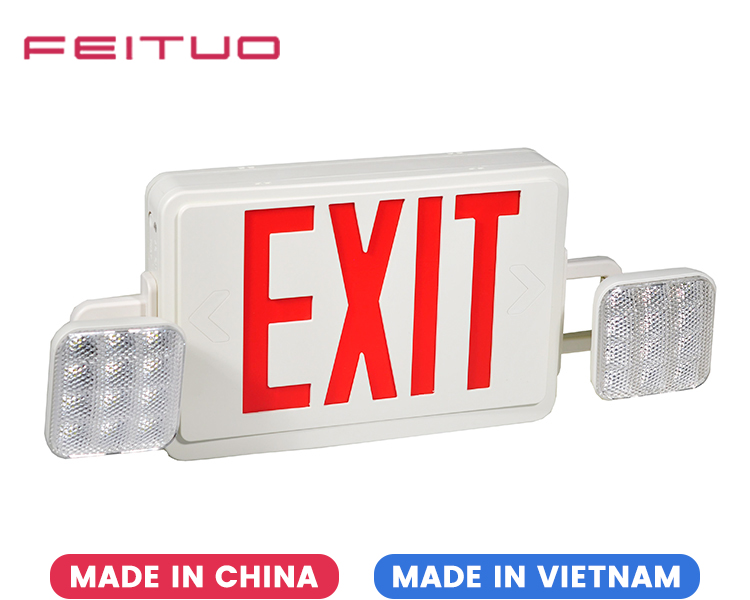

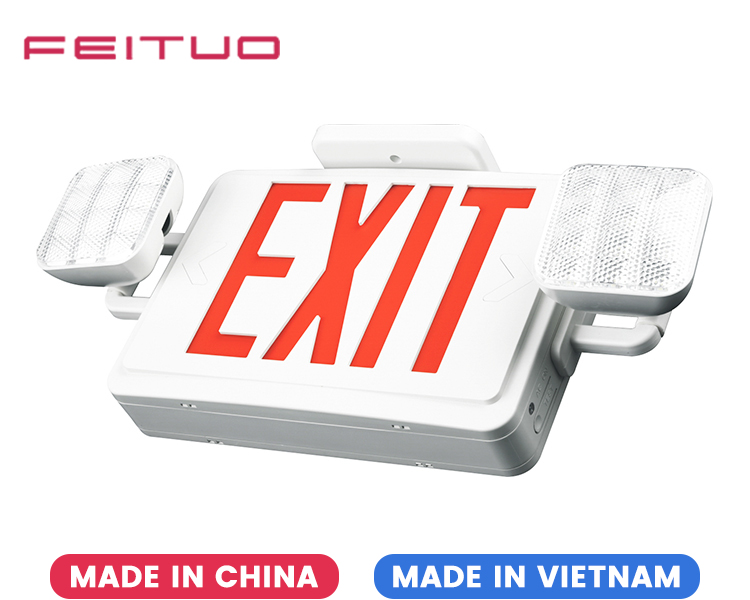

JLEC2RWRC-Remote Capable LED Exit Sign

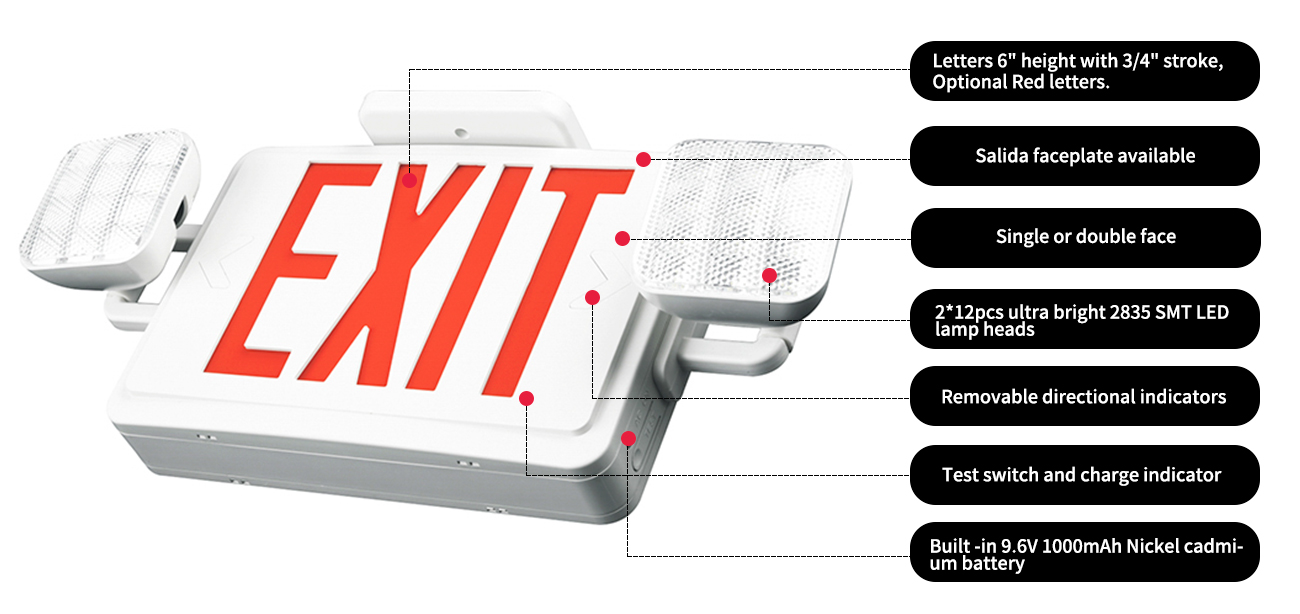

Features:
LED Combo EMERGENCY EXIT SIGN with LED Heads (Red Letters, Remote Capable)
*Injection-molded thermoplastic ABS housing, UL 94V-0 flame rating.
*Innovative, easy installation in minutes
*Letters 6" height with 3/4" stroke, Optional Red letters.
*Salida faceplate available
*Single or double face
*Removable directional indicators
*Universal J-box mounting pattern.
*120V/277VAC dual voltage operation
*2*12pcs ultra bright 2835 SMT LED lamp heads for emergency mode
*Built -in 9.6V 1000mAh Nickel cadmium battery for minimum 90 minutes emergency operation
*Maximum 24 hours for full recharge time

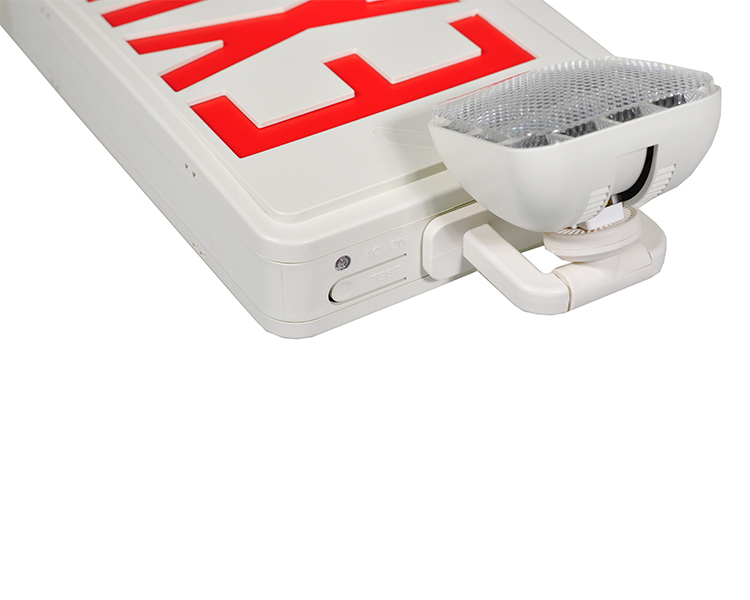

*Test switch and charge indicator
*0℃-40℃ indoor damp location listed

Usage ：For hospital, hotel, mall, outdoor, parking lot, restaurant, office Building, station, supermarket

Certification ：UL

PDF download
Contact us

Scene Application

Description

An efficient and secure Exit Sign / Emergency Light Combo. Save money buying this 2-in-1 product. Long lasting, low maintenance Ni-Cad battery. Works on either 120 or 277 VAC. Faceplate includes knock-out left/right arrows. Fixture is 1 or 2 sided. Product is UL Listed and meets NFPA 101, OSHA and UL 924 emergency codes. As a home, commercial and industrial lighting, perfect for hallway, corridor, hospital, apartments, churches, shopping malls, supermarkets, schools, hotel, pub, restaurant, warehouses, office building, etc.

Technical Details

Part Number JLEC2RWRC
Item Weight 4.54 lbs   /   2.06 kgs
Package Dimensions 19.3 x 8.27 x 4.72 inches
49 x 21 x 12 cm
Color ‎White /  Red EXIT Letter
Material Thermoplastic
Voltage 120/277 Volts
Battery 9.6V 1000mAh Ni-Cad
Wattage 4.2 watts
Type of Bulb ‎LED
Mounting Type ‎Wall Mounted
Certifications UL listed
Weather Ratings Listed for damp location
Carton Weight 29.32 lbs   /   13.3 kgs
Carton Size 19.69 x 17.32 x 15.16 inches / 6pcs
50 x 44 x 38.5 cm / 6pcs

*ILLUMINATION - Emergency lamps use long-lasting, energy efficient ultra bright white LEDs. Heads are made with high-performance chrome plated reflectors and polycarbonate lenses for optimal light distribution. The LED Exit Sign series illumination is achieved by use long-lasting, efficient ultra bright red LEDs. Color-matched diffuser eliminates hots spots and striations, providing optimal light output.
*MULTI-ANGLE LIGHTING - Each side of the emergency light has bright adjustable floodlights on the sign for maximum visibility. 360° ratation, the flexibility of the light direction allows you to point the lights at almost a 90 degree angle.
*EMERGENCY POWER BATTERY BACKUP- Emergency light built-in 9.6V 1000mAh Ni-Cad backup battery, upon failure of the normal utility power, an internal solid state transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes.
*EASY INSTALLATION IN MINUTES - Can be wall or ceiling mounted, universal J-box mounting pattern. Test switch and status indicator let you know the emergency lights has power and the battery is working.
*REMOTE HEAD CAPABLE OPTION - The remote head capability option allows the unit to supply power to up to two additional 2W remote heads. The remote heads would then operate on the same emergency mode as the standard units.
*5 YEAR WARRANTY - Our LED emergency lights are offered high quality products at affordable prices backed by 5 year warranty and professional after-sales support.

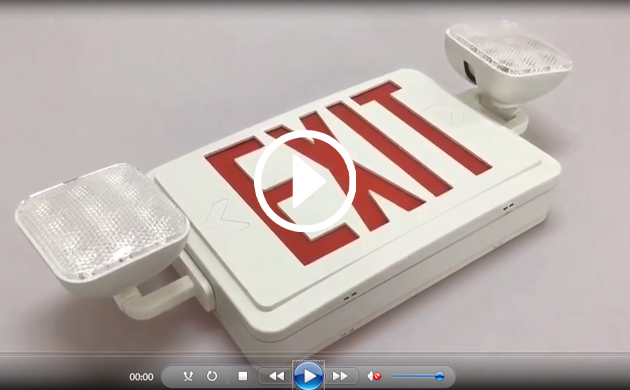

Installation video

  • 1280ba18a32ca26b4bc475b73927c156_1

Show details

Customized Solution

Need Design?
...No Problem!		 FEITUO Lighting has the ideal solution for custom emergency light. lf we do not have it already, our engineers and technicians will work with you to develop a new one. lf you have any needs for your new product or with to make further improvements, we are-here to offer our support.



At NINGBO FEITUO ELECTRIC APPLIANCE CO., LTD., we understand the importance of tailored solutions and exceptional service. That's why we proudly offer comprehensive OEM and ODM services, ensuring that our products seamlessly integrate into your brand and fulfill your specific specifications. Our product range includes, but is not limited to Emergency Lights, Emergency Exit Signs, Emergency Bulkheads, Emergency Twin Spotlights, Emergency Downlights,and Emergency Battery Backups.Whether you need a customized design, unique features, or branding elements, our dedicated team is here to bring your vision to life.

Applications

  • Hospital
  • Hotel
  • Mall
  • Outdoor
  • Parking lot
  • Restaurant
  • Office building
  • Station
  • Supermarket

Product comparison

PRICTURE
MODEL NO JLEC2RW JLEC2RWRC JLEC2GW JLEC2GWRC JLEC2BCW JLECD2RW JLECD2GW JLECB2RW JLECB2RWRC JLECB2GW JLECE2RW JLECE2RWRC JLECE2GW JLECE2GWRC JLECE2BCW JLECE2BCWRC
SIZE 409*111*202mm
16.1"*4.37"*7.95"		 409*111*202mm
16.1"*4.37"*7.95"		 409*111*202mm
16.1"*4.37"*7.95"		 430*46.7*193mm
16.93"*1.84"*7.6"		 330.8*58.8*190mm
11.84"*2.31"*7.48"		 330.8*58.8*190mm
11.84"*2.31"*7.48"		 418*52*184mm
16.46"*2.05"*7.24"		 418*52*184mm
16.46"*2.05"*7.24"		 418*52*184mm
16.46"*2.05"*7.24"
LETTER
SIZE		 6" 6" 6" 6" 6" 6" 6" 6" 6"
LETTER COLOR Red Green Bi-Color Red / Green Red Green Red Green Red Green Bi-Color Red / Green
RATED
VOLTAGE		 120/277V 120/277V 120/277V 120-277V 120/277V 120/277V 120-277V 120-277V 120-277V
INPUT
CURRENT		 0.07/0.05A 0.07/0.05A 0.031/0.016A 0.032A 0.03/0.013A 0.03/0.013A 0.036A 0.05A 0.036A 0.05A 0.032/0.017 0.047/0.028
INPUT WATT 4.2W 4.2W 3.5W 3.3W 3.5W 3.5W 2.3W 3.2W 2.3W 3.2W 2W 2.8W
LED TYPE (12)Red LEDs+2*12pcs 2835 SMT LED lamp (8)Green LEDs+2*12pcs 2835 SMT LED lamp (9) Red LEDs/(6) Green LEDs +2*8pcs lamp heads (10)Red LEDs+2*8pcs lamp heads (8)Green LEDs+2*8pcs lamp heads (6)Red LEDs+ 2*1W SMT LED lamp heads (6)Green LEDs+ 2*1W SMT LED lamp heads (8)Red LEDs + 2*1W lamp heads (8)Red LEDs + 2*1W lamp heads (6)Green LEDs + 2*1W lamp heads (6)Green LEDs + 2*1W lamp heads (6) Red LEDs for/(6) Green LEDs  + 2*1W lamp heads (6) Red LEDs for/(6) Green LEDs  + 2*1W lamp heads
REMOTE CAPABILITYR / 2W remote lamps / 2W remote lamps / / / / 2W remote lamps / / 2W remote lamps / 2W remote lamps / 2W remote lamps
BATTERY Ni-cd
9.6V 600mAh		 Ni-cd
9.6V 1000mAh		 Ni-cd
9.6V 600mAh		 Ni-cd
9.6V 1000mAh		 NI-MH
3.6V, 1200mAh		 Ni-MH
1.2V, 1000mAh		 Ni-cad
3.6V 1000mAh		 Ni-cad
3.6V 2000mAh		 Ni-cad
3.6V 1000mAh		 NI-MH
1.2V, 1000mAh		 NI-MH
1.2V, 2000mAh		 NI-MH
1.2V, 1000mAh		 NI-MH
1.2V, 2000mAh		 NI-MH
3.6V, 1000mAh		 NI-MH
3.6V, 2000mAh
OUTPUT Lumens ≥220lm ≥220lm ≥300lm ≥300lm ≥170lm ≥170lm ≥220lm ≥220lm ≥180lm
CHARGING TIME 24 Hours 24 Hours 24 Hours 24 Hours 24 Hours 24 Hours 24 Hours 24 Hours 24 Hours
EMERGENCY RUN TIME 120 Mins 120 Mins 120 Mins 120 Mins 120 Mins 120 Mins 120 Mins 120 Mins 120 Mins
INNER BOX SIZE 49*21*12cm 49*21*12cm 49*21*12cm 44.3*20.7*4.8cm 31*20.4*6cm 31*20.4*6cm 42.7*19.3*6cm 42.7*19.3*6cm 42.7*19.3*6cm
20GP 2076pcs 2076pcs 2076pcs 4878pcs 5610pcs 5610pcs 4560pcs 4560pcs 4560pcs
40HQ 4787pcs 4787pcs 4787pcs 12390pcs 14220pcs 14220pcs 11880pcs 11880pcs 11880pcs
