JELCEX2RM-Double Face 6 Inch Acrylic Pane Exit Sign With Silver Mylar Wholesale

Home / Product / Exit Sign / Exit light / JELCEX2RM-Double Face 6 Inch Acrylic Pane Exit Sign With Silver Mylar
Exit light
Virtual showroom
  • JELCEX2RM-Double Face 6 Inch Acrylic Pane Exit Sign With Silver Mylar
  • JELCEX2RM-Double Face 6 Inch Acrylic Pane Exit Sign With Silver Mylar
Exit light

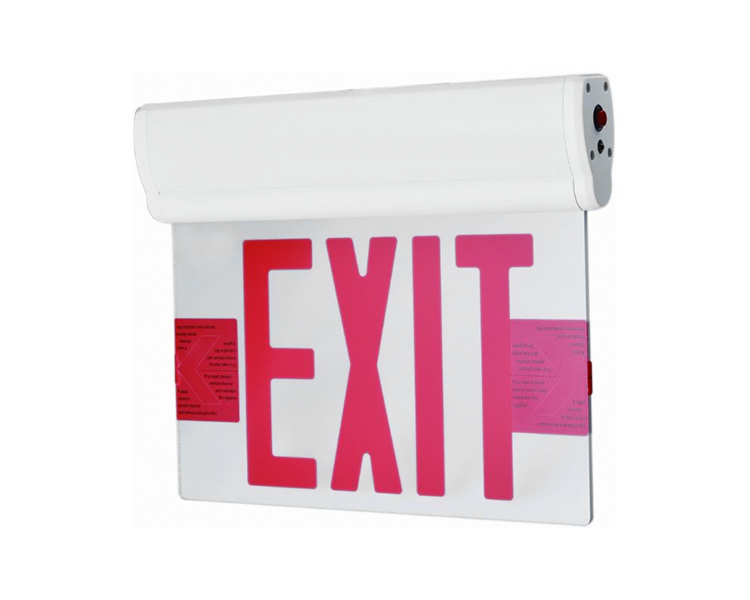

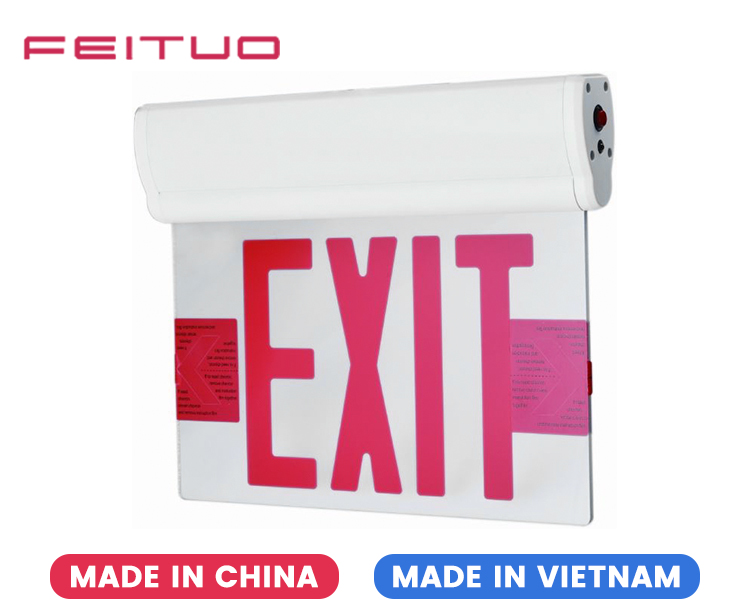

JELCEX2RM-Double Face 6 Inch Acrylic Pane Exit Sign With Silver Mylar

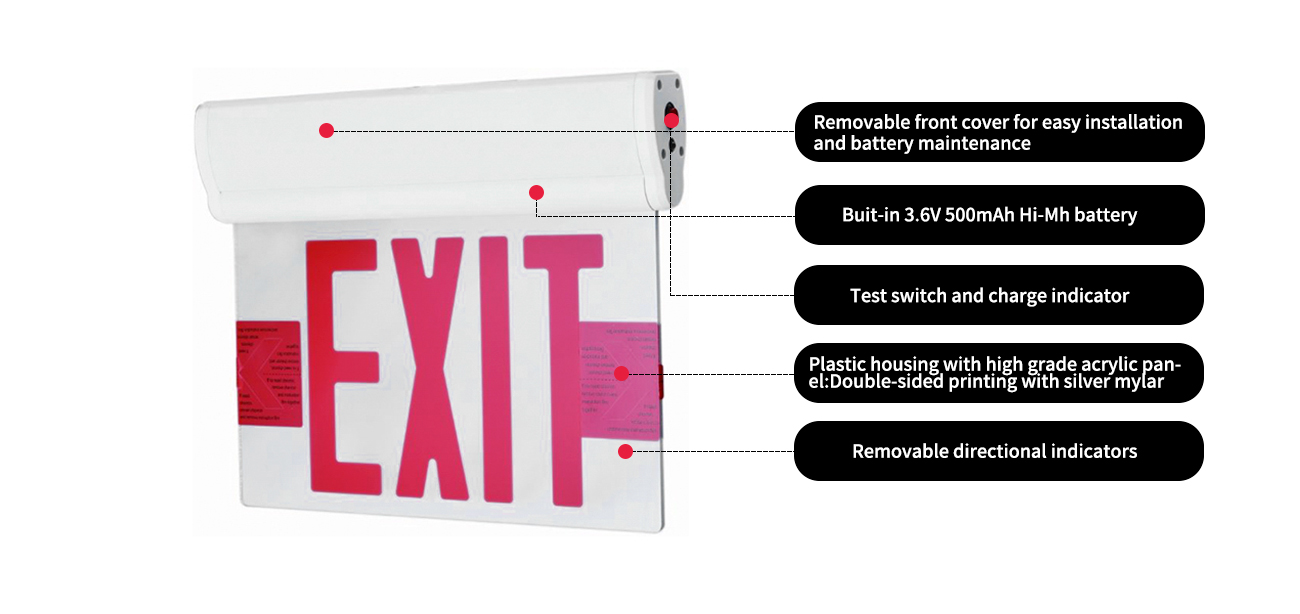

Features:
Double Face Plastic body 6 Inch LED EMERGENCY EXIT SIGN
*Plastic housing with high grade acrylic panel:Double-sided printing with silver mylar
*Innovative,easy installation in minutes.
*Plastic mounting plate allows top,back or end mount.
*Removable directional indicators.
*120V/277VAC dual voltage operation
*Super bright red LED lamps.
*Buit-in 3.6V 500mAh Ni-Mh battery for minimum 90 minutes emergency operation.
*Maximum 24 hours for full recharge time
*Test switch and charge indicator
*Removable front cover for easy installation and battery maintenance.
*UL and CULus listed
*0℃ to 40℃ indoor damp location listed

Usage ：For hospital, hotel, mall, outdoor, parking lot, restaurant, office Building, station, supermarket

Certification ：UL

PDF download
Contact us

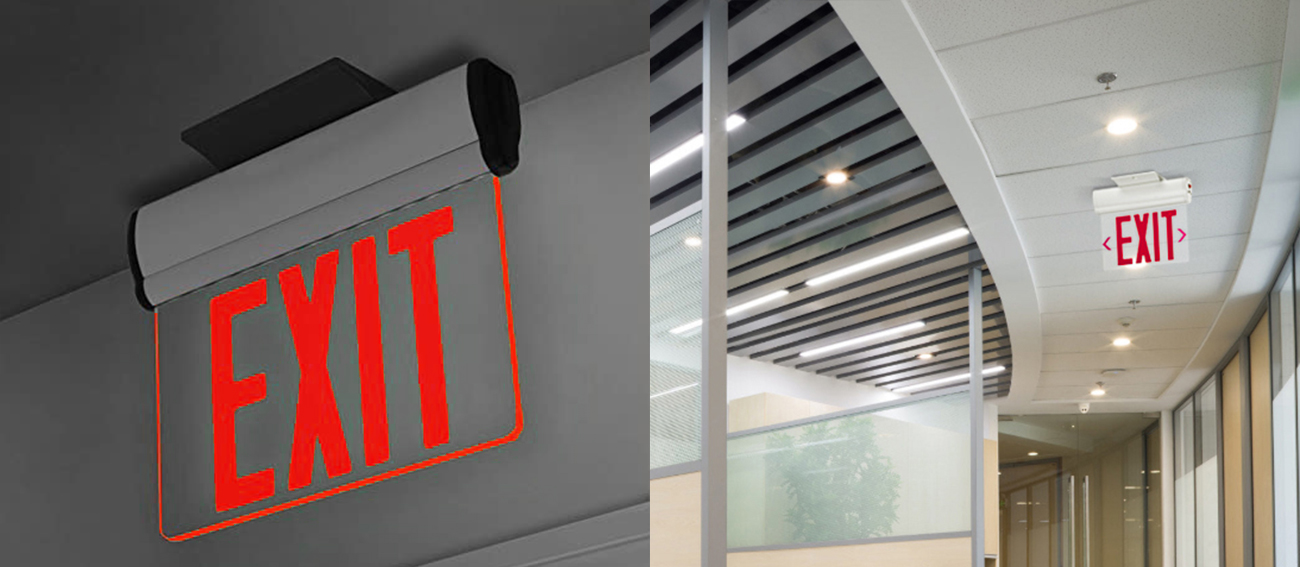

Scene Application

Description

The ultimate exit sign in design and versatility. This Red LED Edge Lit Exit Sign will solve almost any mounting configuration problem.  This one style allows for ceiling, side, and wall mount installation.  The edge lit panel is constructed of high grade acrylic with customizable directional arrows to point towards exit direction.Mirror divider Single and on double-face versions. The removable front cover makes installation and maintenance headache-free!
The LED series is UL listed and meets or exceeds the following: UL 924, NEC and NFPA 101 Life Safety Code requirements. Also available with UL Canada listing option.

Technical Details

Part Number JELCEX2RM
Item Weight 2.65 lbs   /  1.2 kgs
Package Dimensions 12.8 x 8.27 x 2.56 inches
32.5 x 21 x 6.5 cm
Color Red EXIT Letter
Material ABS housing with mirror divider acrylic double face
Voltage 120 or 277 Volts
Battery 3.6V 500mAh Ni-MH
Wattage 4 watts
Type of Bulb ‎LED
Mounting Type Wall, sloped, high, or standard ceiling mounting
Certifications UL listed
Weather Ratings Listed for damp location
Carton Weight 17.64 lbs   /  8 kgs
Carton Size 15.75 x 13.19 x 8.66 inches / 6pcs
40 x 33.5 x 22 cm / 6pcs
*CONSTRUCTION - This Edge Lit Exit Sign housing is constructed of die-cast ABS housing with an etched, mirror divider acrylic panel. Lettering is 6" high with 3/4" stroke.
*ILLUMINATION - This Edge Lit Exit Sign series provides a long life LED illumination. The unit is constructed with a red high output LED board.  Energy consumption is rated at less than 4 watts for the AC only model units. Battery backup units energy consumption is rated at less than 1 watts.
*EMERGENCY POWER BATTERY BACKUP- This Edge Lit Exit Sign series is designed with a 3.6 Volt 500mAh maintenance-free Ni-MH battery. The battery is protected by a low voltage cut-off circuit. The operating temperature range for the battery is 32°F (0°C) to 104°F (40°C).
*EASY INSTALLATION IN MINUTES - The Edge Lit Exit Sign is suitable for wall, sloped, high, or standard ceiling mounting. Includes field installable directional arrow indicators. All hardware is included.
*5 YEAR WARRANTY - Our LED emergency lights are offered high quality products at affordable prices backed by 5 year warranty and professional after-sales support.

Show details

Customized Solution

Need Design?
...No Problem!		 FEITUO Lighting has the ideal solution for custom emergency light. lf we do not have it already, our engineers and technicians will work with you to develop a new one. lf you have any needs for your new product or with to make further improvements, we are-here to offer our support.



At NINGBO FEITUO ELECTRIC APPLIANCE CO., LTD., we understand the importance of tailored solutions and exceptional service. That's why we proudly offer comprehensive OEM and ODM services, ensuring that our products seamlessly integrate into your brand and fulfill your specific specifications. Our product range includes, but is not limited to Emergency Lights, Emergency Exit Signs, Emergency Bulkheads, Emergency Twin Spotlights, Emergency Downlights,and Emergency Battery Backups.Whether you need a customized design, unique features, or branding elements, our dedicated team is here to bring your vision to life.

Applications

  • Hospital
  • Hotel
  • Mall
  • Outdoor
  • Parking lot
  • Restaurant
  • Office building
  • Station
  • Supermarket

Product comparison

Pricture
Part Number JELCEX1GC JELCEX1RC JELCEX1GM JELCEX1RM JELCEX2GM JELCEX2RM JELEX1GM JELEX1RM
Item Weight 2.65 lbs   /  1.2 kgs 2.65 lbs   /  1.2 kgs 2.65 lbs   /  1.2 kgs 3.3 lbs   /  1.5 kgs
Package Dimensions 12.8 x 8.27 x 2.56 inches 12.8 x 8.27 x 2.56 inches 12.8 x 8.27 x 2.56 inches 13.98 x 11.42 x 2.36 inches
32.5 x 21 x 6.5 cm 32.5 x 21 x 6.5 cm 32.5 x 21 x 6.5 cm 35.5 x 29 x 6 cm
Color Green EXIT Letter Red EXIT Letter Green EXIT Letter Red EXIT Letter Green EXIT Letter Red EXIT Letter Green EXIT Letter Red EXIT Letter
Material ABS housing with acrylic face,
Single-sided printing		 ABS housing with mirror divider acrylic face,
Single-sided printing		 ABS housing with mirror divider acrylic double face,
Double-sided printing		 Aluminum housing with mirror divider acrylic face,
Single-sided printing
Voltage 120 or 277 Volts 120 or 277 Volts 120 or 277 Volts 120 or 277 Volts
Battery 3.6V 500mAh Ni-MH 3.6V 500mAh Ni-MH 3.6V 500mAh Ni-MH 3.6V 600mAh Ni-Cad
Wattage 4 watts 4 watts 4 watts 3.5 watts
Type of Bulb ‎LED ‎LED ‎LED ‎LED
Mounting Type Wall, sloped, high, or standard ceiling mounting Wall, sloped, high, or standard ceiling mounting Wall, sloped, high, or standard ceiling mounting Wall, sloped, high, or standard ceiling mounting
Certifications UL listed UL listed UL listed UL listed
Weather Ratings Listed for damp location Listed for damp location Listed for damp location Listed for damp location
Carton Weight 17.64 lbs   /  8 kgs 17.64 lbs   /  8 kgs 17.64 lbs   /  8 kgs 21.6 lbs   /   9.8 kgs
Carton Size 15.75 x 13.19 x 8.66 inches / 6pcs 15.75 x 13.19 x 8.66 inches / 6pcs 15.75 x 13.19 x 8.66 inches / 6pcs 15.35 x 14.37 x 12.2 inches / 6pcs
40 x 33.5 x 22 cm / 6pcs 40 x 33.5 x 22 cm / 6pcs 40 x 33.5 x 22 cm / 6pcs 39 x 36.5 x 31 cm / 6pcs

FAQ

  • Are you the factory?

    A: Yes, we are the factory. Our facility in Ningbo has over 400 dedicated staff and spans more than 70,000 square meters. Additionally, we have established a production base in Haiphong, Vietnam, covering 33,000 square meters. Our strategic locations ensure convenient export to any country in the world. We warmly welcome you to visit our factories!

  • What's your main product line?

    A: FEITUO specializes in emergency lighting solutions. Our main product lines include emergency lighting, exit signs, exit sign combos, emergency drivers, and ballasts, among others.

  • Which certificates do you have and what are your main markets?

    A: We hold various certifications, including UL, CUL, CE, RoHS, FCC, DOE, CEC, and ISO9001. Our main markets are North America, South America, Europe, the Middle East, and Asia.

  • Can you provide samples?

    A: Yes, we accept sample orders for quality testing, offering 1-2 pieces per model. Samples are typically ready within 1-7 working days.
    Due to our products containing batteries, major courier companies like DHL, FedEx, and UPS usually cannot ship them by air. We arrange delivery through courier agents who accept shipments with Freight Prepaid in China. Please note that company courier account numbers cannot be used for these samples. Delivery usually takes 3-7 days, with both air and sea shipping options available.

  • What is the MOQ?

    A: Our MOQ ranges from 200 to 5000 pieces per model, depending on the specific product. You are welcome to use your own logo, your own packing design, and customize the voltage and plug type to suit your specific requirements.

    If your order quantity is on the lower end, there may be some additional costs involved. This is due to the need for reconfiguring our production line and the associated labor costs. These factors contribute to a slightly higher unit price for smaller orders. We appreciate your understanding in this matter.
